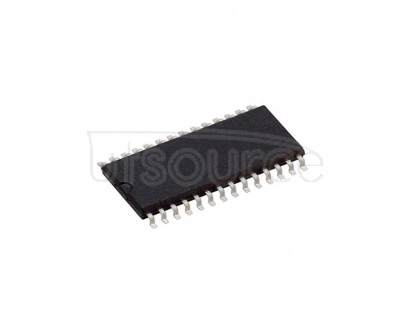

16-BIT 250-KSPS SAMPLING CMOS ANALOG-TO-DIGITAL CONVERTER
- Architecture: SAR
- Brand: Texas Instruments
- DateCode: 11+
- Package / Case: SOP
- Power Dissipation: 100(W)
- Mounting: Surface Mount
- Operating Temp Range: -40C to 85C
- Package Type: SOIC
- Packaging: Tape and Reel
- Pin Count: 28
- Rated Input Volt: ±10
- Number of Elements: 1
- Sample Rate: 250(KSPS)
- Input Type: Voltage
- Operating Temperature Classification: Industrial
- Differential Input: No
- Input Polarity: Bipolar
- Dual Supply Voltage (Typ): Not Required(V)
- Power Supply Requirement: Analog and Digital
- Dual Supply Voltage (Min): Not Required(V)
- Rad Hardened: No
- Single Supply Voltage (Min): 4.75(V)
- Single Supply Voltage (Max): 5.25(V)
- Single Supply Voltage (Typ): 5(V)
- Dual Supply Voltage (Max): Not Required(V)
- Differential Linearity Error: ±2LSB
- Resolution: 16Bit
- Integral Nonlinearity Error: ±4LSB(LSB)
- Input Signal Type: Single-Ended
