Description

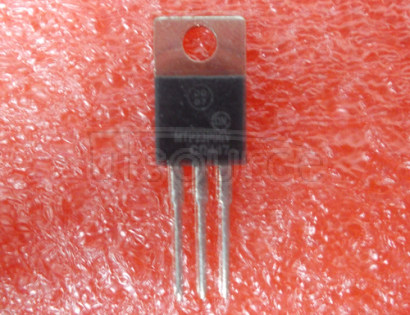

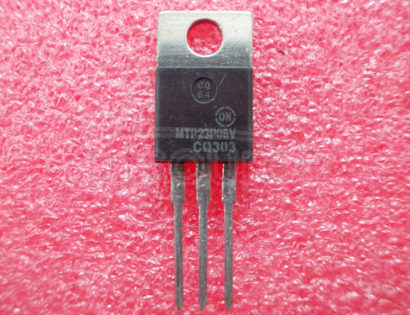

Power MOSFET 23 Amps, 60 Volts
Package: TO-220 3 LEAD STANDARD
No of Pins: 3
Container: Rail
Qty per Container: 50
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $0.77700 | US $0.69930 | US $0.69930 |
| ≥5: | US $0.62160 | US $0.55944 | US $2.79720 |
| ≥10: | US $0.35742 | US $0.32168 | US $3.21680 |
| ≥20: | US $0.31080 | US $0.27972 | US $5.59440 |
| ≥50: | US $0.27972 | US $0.25175 | US $12.58750 |
| ≥100: | US $0.27195 | US $0.24475 | US $24.47500 |
| ≥200: | US $0.26418 | US $0.23776 | US $47.55200 |
| ≥500: | US $0.25641 | US $0.23077 | US $115.38500 |
| ≥1000: | US $0.24864 | US $0.22378 | US $223.78000 |
Substitute (equivalent) Product
| Substitute Product | Brief Description |
|---|---|
| STP36NF06 | N-channel 60V, 30A MOSFET, used for switching and amplification applications in automotive and industrial environments. |
| IRF9540N | P-channel 100V, 23A MOSFET, suitable for switching power supplies and motor control applications. |
| IRF5305 | P-channel 55V, 31A MOSFET, often used in DC-DC converters and high-efficiency power management circuitry. |
| RFP30P05 | P-channel 50V, 30A MOSFET, ideal for low voltage power management applications and load switching. |
| MTD2955 | P-channel 60V, 12A MOSFET, typically used in power switching circuits and voltage regulators. |
Product Usage
The MTP23P06VG is a P-Channel Power MOSFET that can be employed in various circuits due to its characteristics such as low RDS(on), fast switching, and high current capability. Some common circuits and applications where the MTP23P06VG might be used include:
Power Management Circuits: It can be used in power supply circuits to switch and regulate power efficiently, including in DC-DC converters.
Motor Control Circuits: This MOSFET can drive motors in applications like robotics, motion control systems, and electric vehicles due to its ability to handle high currents and voltages.
Load Switching: It can be used to switch heavy loads on and off in circuits, useful in automotive applications, industrial automation, and consumer electronics.
LED Drivers: It might be used in circuits that drive high-power LEDs due to its fast switching capabilities and efficiency.
Battery Management Systems: Given its ability to handle high currents, it could be used in managing the charging and discharging cycles of large batteries.
Audio Amplifiers: It can be part of the output stage in audio amplifiers, providing efficient power amplification.
RF Circuits: Due to its switching speed, it may also find usage in RF switching applications.
Whenever using the MTP23P06VG, it's crucial to consult its datasheet to ensure its characteristics match the specific requirements of the application, such as maximum voltage, current, power dissipation, and thermal management considerations.
