5-A H-Bridge for DC-Motor Applications
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| Parameter | Symbol | Min | Typ | Max | Unit | Description |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | 4.5 | 5 | 5.5 | V | Operating voltage range |
| Output Current | IOUT | - | 2.5 | 3 | A | Maximum output current |
| Quiescent Current | IQ | - | 10 | 15 | mA | Quiescent current at nominal operating conditions |
| Load Regulation | ΔILOAD | - | 0.5 | 1 | % | Change in output current with load |
| Line Regulation | ΔILINE | - | 0.2 | 0.5 | % | Change in output current with line voltage |
| Thermal Shutdown | TSD | - | 160 | 180 | °C | Temperature at which the device initiates thermal shutdown |
| Junction Temperature | TJ | -40 | - | 150 | °C | Operating junction temperature range |
| Storage Temperature | TSTG | -40 | - | 150 | °C | Temperature range for storage |
For detailed specifications and application notes, refer to the official datasheet provided by the manufacturer.

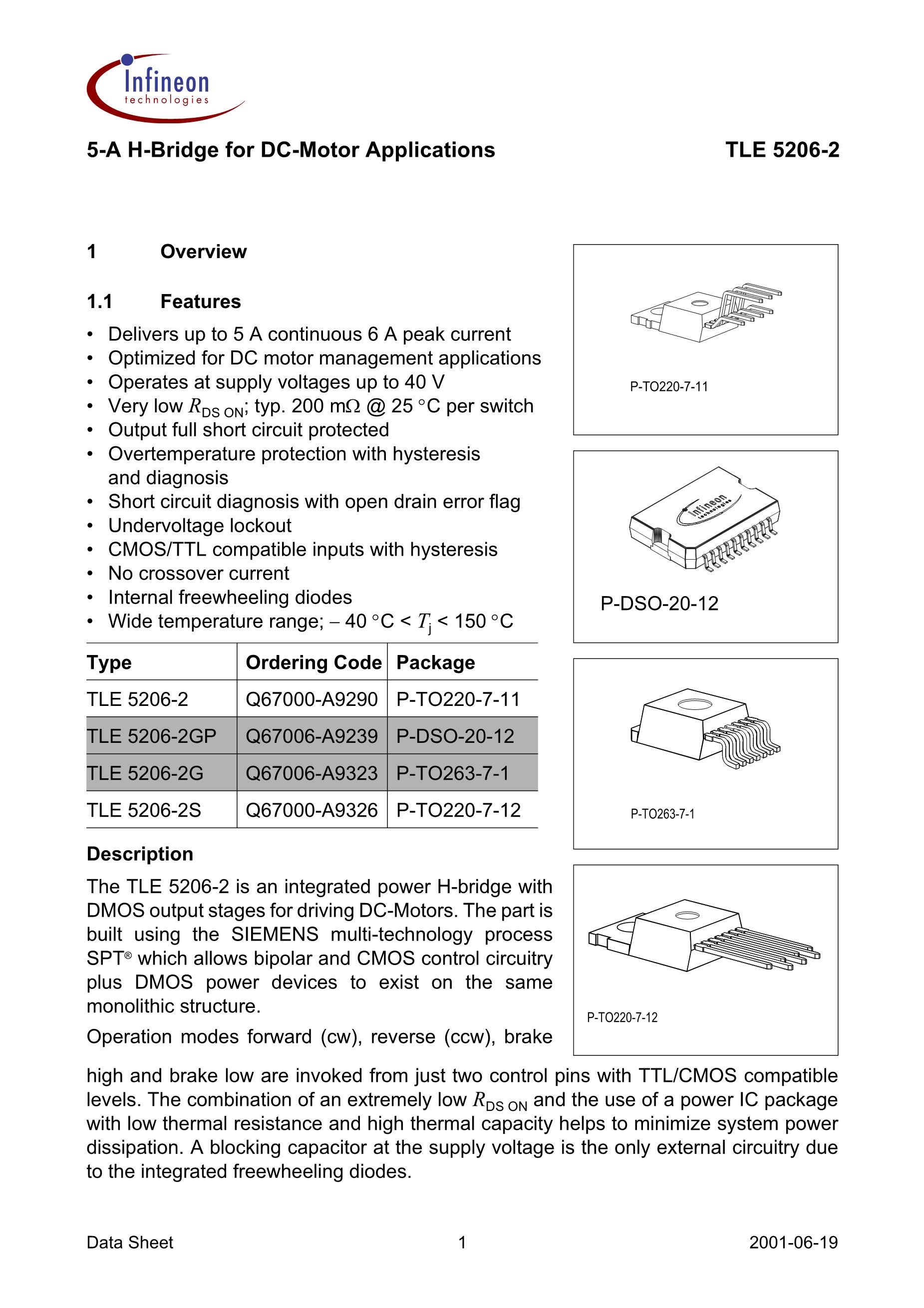

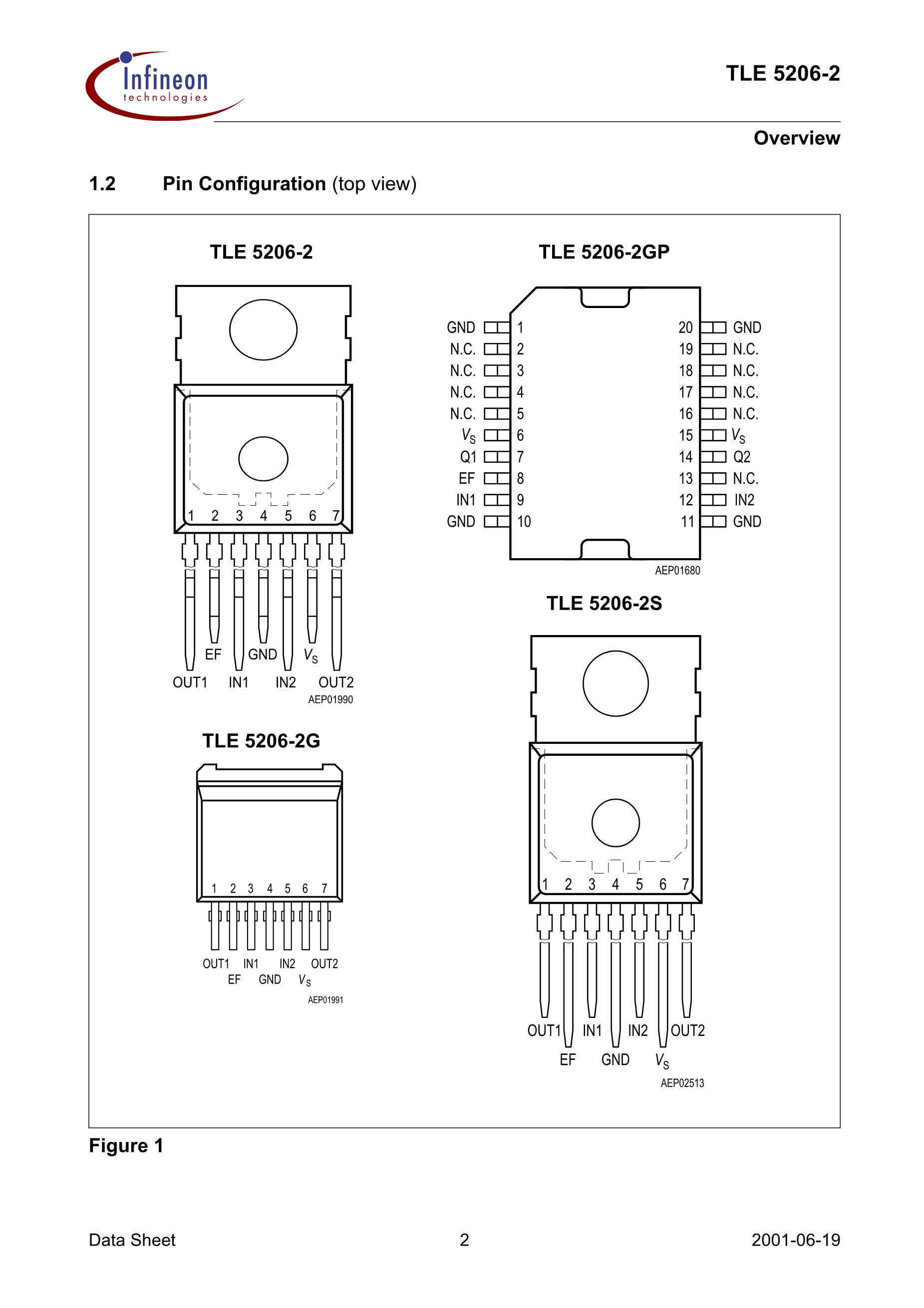

(For reference only)Preview of the first 3 pages of the data sheet
