Description

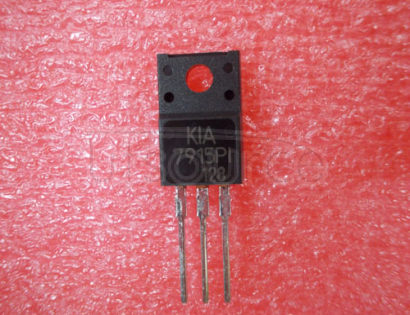

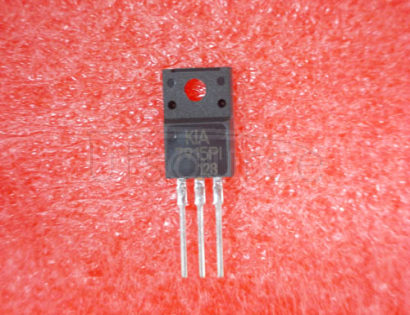

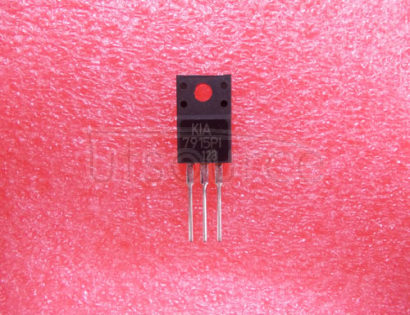

1A Three Terminal 15V Negative Voltage Regulator、1A，15V
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
FEATURES
● Suitable for C-MOS, TTL, and the other digital IC power supply.
● Internal thermal overload protecting.
● Internal short circuit current limiting.
● Output current in excess of 1.0A.
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $0.54560 | US $0.49104 | US $0.49104 |
| ≥5: | US $0.43648 | US $0.39283 | US $1.96415 |
| ≥10: | US $0.25098 | US $0.22588 | US $2.25880 |
| ≥20: | US $0.21824 | US $0.19642 | US $3.92840 |
| ≥50: | US $0.19642 | US $0.17678 | US $8.83900 |
| ≥100: | US $0.19096 | US $0.17187 | US $17.18700 |
| ≥200: | US $0.18550 | US $0.16695 | US $33.39000 |
| ≥500: | US $0.18005 | US $0.16204 | US $81.02000 |
| ≥1000: | US $0.17459 | US $0.15713 | US $157.13000 |
Substitute (equivalent) Product
| Substitute Product | Description |
|---|---|
| L7915CV | Linear 3-Terminal Negative Voltage Regulator, -15V output, 1.5A current capacity, typically in a TO-220 package. |
| MC7915CT | Negative Voltage Regulator, -15V output, 1.5A current capacity, TO-220 package. |
| KA7915 | -15V Fixed Negative Voltage Regulator, 1.5A current capacity, commonly in a TO-220 package. |
| UA7915CKCS | Negative Voltage Regulator, -15V output, 1.5A current capacity, TO-220 package. |
| LM7915CT | -15V Negative Voltage Regulator, 1.5A current capacity, TO-220 package. |
These are potential substitute products for the KIA7915PI, offering similar voltage regulation and current capacity.
Product Usage
The KIA7915PI is a fixed negative voltage regulator IC, commonly used in power supply circuits to provide a stable -15V output. Here are some typical applications and circuits where it is used:
Power Supply Circuits:
Operational Amplifier Circuits:
Analog and Digital Mixed Systems:
Test and Measurement Equipment:
A basic application of the KIA7915PI in a power supply circuit might look like this:
Required Input Voltage (Vin)
|
---
| | Capacitor (C1)
---
|
|-----------o Vin (KIA7915PI)
|
| o Ground (KIA7915PI)
-------o---------o Vout (KIA7915PI, -15V)
| | |
--- | ---
| | | | |
--- | ---
| | |
GND GND Load (connected to Vout -15V and GND)
When designing circuits with this regulator, it's essential to consider heat dissipation, as linear regulators like the KIA7915PI can dissipate significant power as heat, especially when there is a large difference between the input and output voltage. Proper heat sinking and thermal management are crucial.
For more complex or specific applications, consult the datasheet of the KIA7915PI to understand its full specifications, limitations, and detailed application guidelines.
