Description
Smart High-Side Power Switch
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
Overview
Product Summary

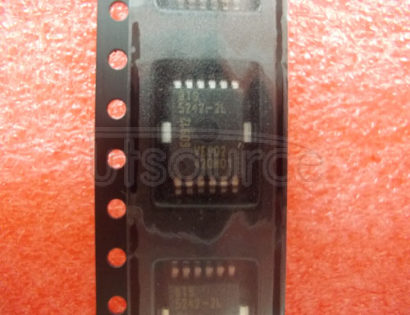

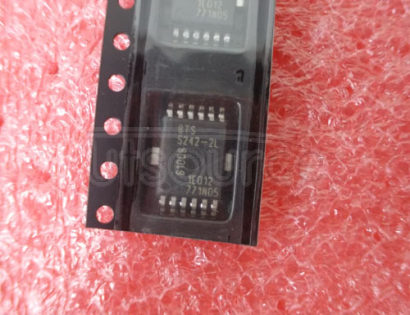

The BTS5242-2L is a dual channel high-side power switch in PG-DSO-12-9 package providing embedded protective functions.
The power transistor is built by a N-channel vertical power MOSFET with charge pump. The device is monolithically integrated in Smart SIPMOS technology.
Basic Features
● Very low standby current
● 3.3 V and 5 V compatible logic pins
● Improved electromagnetic compatibility (EMC)
● Stable behavior at under voltage
● Logic ground independent from load ground
● Secure load turn-off while logic ground disconnected
● Very low leakage current from OUT to GND
● Green Product (RoHS compliant)
● AEC Qualified
Applications
● μC compatible high-side power switch with diagnostic feedback for 12 V grounded loads
● All types of resistive, inductive and capacitive loads
● Most suitable for loads with high inrush currents, so as lamps
● Replaces electromechanical relays, fuses and discrete circuits
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $6.98500 | US $6.28650 | US $6.28650 |
| ≥5: | US $6.63575 | US $5.97218 | US $29.86090 |
| ≥10: | US $6.28650 | US $5.65785 | US $56.57850 |
| ≥20: | US $6.11188 | US $5.50069 | US $110.01380 |
| ≥50: | US $5.93725 | US $5.34353 | US $267.17650 |
| ≥100: | US $5.76262 | US $5.18636 | US $518.63600 |
| ≥200: | US $5.58800 | US $5.02920 | US $1005.84000 |
| ≥500: | US $5.51815 | US $4.96633 | US $2483.16500 |
| ≥1000: | US $5.41338 | US $4.87204 | US $4872.04000 |
Substitute (equivalent) Product
| Substitute Product | Description |
|---|---|
| BTS50055-1TMA | Smart high-side power switch, single channel, 18 mΩ, for 12V automotive applications. |
| BTS555 | Smart high-side power switch, single channel, 2.5 mΩ, designed for a wide range of automotive and industrial applications. |
| BTS50080-1TEA | Smart high-side power switch, single channel, 7.5 mΩ, suitable for automotive and industrial applications. |
| BTS5016-1EKA | Smart high-side power switch, single channel, 16 mΩ, robust and designed for automotive and industrial applications. |
| BTS50070-1EGA | Smart high-side power switch, single channel, 7 mΩ, ideal for automotive systems requiring high current capabilities. |
| VNQ7050AJTR | Quad channel high-side driver, 50 mΩ, supports automotive applications with advanced diagnostics and protection features. |
| VNQ660SP | Quad channel high-side driver, 60 mΩ, ideal for automotive applications requiring multiple high-side switches. |
| BTS5210-GA | Smart high-side power switch, single channel, 10 mΩ, suitable for general automotive applications with integrated DMOS power transistor. |
| BTS5234L | Dual high-side power switch, 34 mΩ, designed for automotive applications with integrated protection and diagnostic features. |
| IR3315 | High-side switch for automotive applications with integrated current sense, over-current, and over-temperature protection. |
Product Usage
The BTS5242-2L is a high side power switch widely used in automotive and industrial applications. This type of integrated circuit is typically employed where reliable and efficient switching of power loads is required. Specific circuits and applications where the BTS5242-2L might be used include:
Automotive Applications:
Industrial Applications:
General Power Switching Applications:
Key features of the BTS5242-2L, such as diagnostic feedback, overload protection, and short circuit protection, make it highly suitable for these applications where reliability and safety are paramount. Integration with microcontrollers for intelligent control and monitoring is also common, allowing for sophisticated power management and fault diagnosis capabilities.
