Description

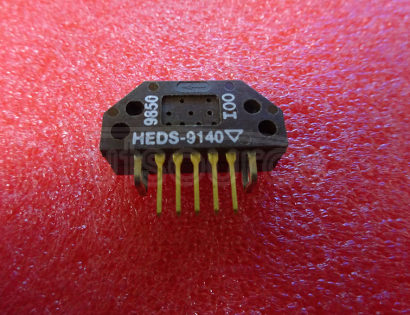

The HEDS-9040 and HEDS-9140 series are three channel optical incremental encoder modules. When used with a codewheel, these low cost modules detect rotary position. Each module consists of a lensed LED source and a detector IC enclosed in a small plastic package. Due to a highly collimated light source and a unique photodetector array, these modules provide the same high performance found in the HEDS-9000/9100 two channel encoder family.
Features
● Two channel quadrature output with index pulse
● Resolution up to 2000 CPR (Counts Per Revolution)
● Low cost
● Easy to mount
● No signal adjustment required
● Small size
● -40℃ to 100℃ operating temperature
● TTL compatible
● Single 5 V supply
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $13.50360 | US $12.15324 | US $12.15324 |
| ≥5: | US $12.75340 | US $11.47806 | US $57.39030 |
| ≥10: | US $12.37830 | US $11.14047 | US $111.40470 |
| ≥20: | US $12.00320 | US $10.80288 | US $216.05760 |
| ≥50: | US $11.62810 | US $10.46529 | US $523.26450 |
| ≥100: | US $11.47806 | US $10.33025 | US $1033.02500 |
| ≥200: | US $11.25300 | US $10.12770 | US $2025.54000 |
| ≥500: | US $11.10296 | US $9.99266 | US $4996.33000 |
| ≥1000: | US $10.87790 | US $9.79011 | US $9790.11000 |
Substitute (equivalent) Product
| Substitute Product Link | Description |
|---|---|
| HEDM-9140 | HEDM-9140: 3-channel optical encoder with 500 CPR |
| HP-HEDS-5500 | HP-HEDS-5500: Reflective optical encoder module |
| AMT103-V | AMT103-V: Modular incremental encoder, up to 2048 Pulses Per Revolution |
| ACD-10 | ACD-10: Compact rotary encoder with quadrature output |
| ENC1J-D28-L00100L | ENC1J-D28-L00100L: Mechanical incremental encoder with 100 PPR |
Product Usage
The HEDS-9140#I00 is an optical incremental encoder module commonly used in various circuits that require precise position, velocity, and motion measurement. Here are some typical applications and circuits where the HEDS-9140#I00 might be used:
Motor Control Systems:
Automated Machinery:
Feedback Systems:
Rotary Encoders in User Interfaces:
Measurement Systems:
Scientific Instruments:
Power Supply:
Signal Processing:
Microcontroller Interface:
Vcc (Power):
GND (Ground):
A, B (Quadrature Outputs):
I (Optional Index Pulse):
Required// Basic example code for reading encoder with ATmega328P (e.g., Arduino)
const int encoderAPin = 2; // channel A pin
const int encoderBPin = 3; // channel B pin
volatile long encoderPos = 0;
int lastEncoderBState;
void setup() {
pinMode(encoderAPin, INPUT);
pinMode(encoderBPin, INPUT);
attachInterrupt(digitalPinToInterrupt(encoderAPin), encoderA_ISR, CHANGE);
lastEncoderBState = digitalRead(encoderBPin);
Serial.begin(9600);
}
void encoderA_ISR() {
int encoderAState = digitalRead(encoderAPin);
int encoderBState = digitalRead(encoderBPin);
if (encoderAState != encoderBState) {
encoderPos++;
} else {
encoderPos--;
}
}
void loop() {
Serial.println(encoderPos);
delay(500); // Output position every 500ms
}
By integrating the HEDS-9140#I00 into these types of circuits, you can achieve precise motion control and measurement for a wide range of applications.
