Description

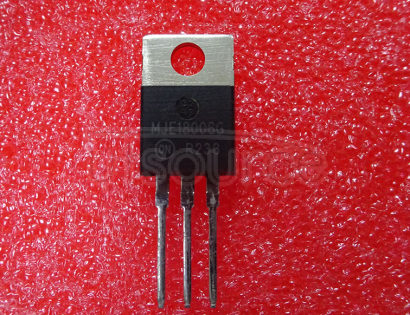

NPN Bipolar Power Transistor For Switching Power Supply Applications
Title
Transistor (bjt) - Single Discrete Semiconductor Product 6A 450V 100W NPN
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $2.05500 | US $1.84950 | US $1.84950 |
| ≥5: | US $1.37000 | US $1.23300 | US $6.16500 |
| ≥10: | US $1.23300 | US $1.10970 | US $11.09700 |
| ≥20: | US $1.19875 | US $1.07887 | US $21.57740 |
| ≥50: | US $1.16450 | US $1.04805 | US $52.40250 |
| ≥100: | US $1.13025 | US $1.01722 | US $101.72200 |
| ≥200: | US $1.09600 | US $0.98640 | US $197.28000 |
| ≥500: | US $1.08230 | US $0.97407 | US $487.03500 |
| ≥1000: | US $1.06175 | US $0.95558 | US $955.58000 |
Substitute (equivalent) Product
| Substitute Product | Brief Description |
|---|---|
| 2N6405G | NPN Silicon Power Transistor; 450V, 10A, TO-3 package; used for high voltage, high speed switching applications. |
| MJW18006G | NPN Silicon Power Transistor; 400V, 15A, TO-247 package; suitable for various applications including switching and amplifying. |
| 2SC3320 | NPN Silicon Power Transistor; 400V, 10A, TO-3PN package; designed for general-purpose switching and amplifier applications. |
| BUH515 | NPN Silicon Power Transistor; 700V, 8A, TO-3PN package; commonly used in high-voltage power supplies and horizontal deflection stages in CRT monitors. |
| SGP20N60C3 | N-channel MOSFET; 600V, 20A, TO-220 package; optimal for high-speed switching and energy-efficient power supplies applications. |
| FDB44N25 | N-channel MOSFET; 250V, 44A, TO-220 package; ideal for low voltage, high current applications with minimized conduction losses. |
| 25N120 | N-channel IGBT; 1200V, 25A, TO-247 package; used for high-voltage and high-speed switching applications like inverters and motor drives. |
| STW20NB50 | N-channel MOSFET; 500V, 20A, TO-247 package; suitable for high-voltage switching and high-efficiency power supply circuits. |
| APT8025B2LC | NPN Power Bipolar Junction Transistor (BJT); 250V, 80A, TO-264 package; designed for power switching and amplifier applications. |
| IRG4BC30KD | N-channel IGBT; 600V, 30A, TO-220 package; designed for high-speed switching applications like induction heating and motor control. |
Product Usage
The MJE18006G is a high-voltage, high-speed NPN transistor commonly used in various electronic circuits where switching and amplification of high voltages and currents are required. Some typical circuits and applications where you might find the MJE18006G include:
Switching Power Supplies: It can be used in the high-voltage side of Switch-Mode Power Supplies (SMPS) due to its ability to handle high voltages and power levels efficiently.
DC-DC Converters: The transistor can be used in the design of DC-DC converters where efficient and fast switching transistors are essential for power conversion.
Inverters: It's suitable for inverters used in applications like renewable energy systems (e.g., solar inverters) and Uninterruptible Power Supplies (UPS).
Motor Drives: You may find this transistor in motor drive circuits, especially in industrial applications where high-voltage handling is necessary.
Flyback Converters: It's often employed in flyback converter topologies in power supply designs for its high voltage capabilities.
Lighting Ballasts: The MJE18006G can be used in electronic ballast circuits for fluorescent and HID lighting systems.
Amplifier Circuits: It may be found in high-power audio and RF amplifiers due to its high power handling characteristics.
Television and Monitor Flyback Transformer Circuits: It is also used in the horizontal output stage of CRT television and monitor flyback transformer circuits.
Before using the MJE18006G in a specific application, always consult the datasheet for detailed specifications such as voltage and current ratings, switching characteristics, thermal management requirements, and safe operating areas to ensure its suitability for your particular application.
