Description
IC OPAMP GP 1.9MHZ RRO 14SOIC
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
| Parameter | Symbol | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VCC | Operating Range | 2.7 | - | 6.0 | V |
| Input Offset Voltage | VIO | VCC = 5V, TA = 25°C | -0.5 | 0.1 | 0.5 | mV |
| Input Bias Current | IB | VCC = 5V, TA = 25°C | - | 25 | - | nA |
| Input Offset Current | IOS | VCC = 5V, TA = 25°C | - | 3 | - | nA |
| Common-Mode Rejection Ratio | CMRR | VCC = 5V, TA = 25°C, f = 0.1 Hz | 80 | - | 100 | dB |
| Power Supply Rejection Ratio | PSRR | VCC = 5V, TA = 25°C, f = 10 Hz | 80 | - | 100 | dB |
| Slew Rate | SR | VCC = 5V, TA = 25°C | 0.4 | - | 0.6 | V/μs |
| Bandwidth (Unity Gain) | BWUG | VCC = 5V, TA = 25°C | - | 1.0 | - | MHz |
| Output Voltage Swing | VOUT | VCC = 5V, TA = 25°C, RL = 10kΩ | 0.2 | - | 4.8 | V |
| Quiescent Current per Amplifier | IQ | VCC = 5V, TA = 25°C | - | 350 | - | μA |
For detailed application circuits and further information, refer to the full datasheet provided by Texas Instruments.

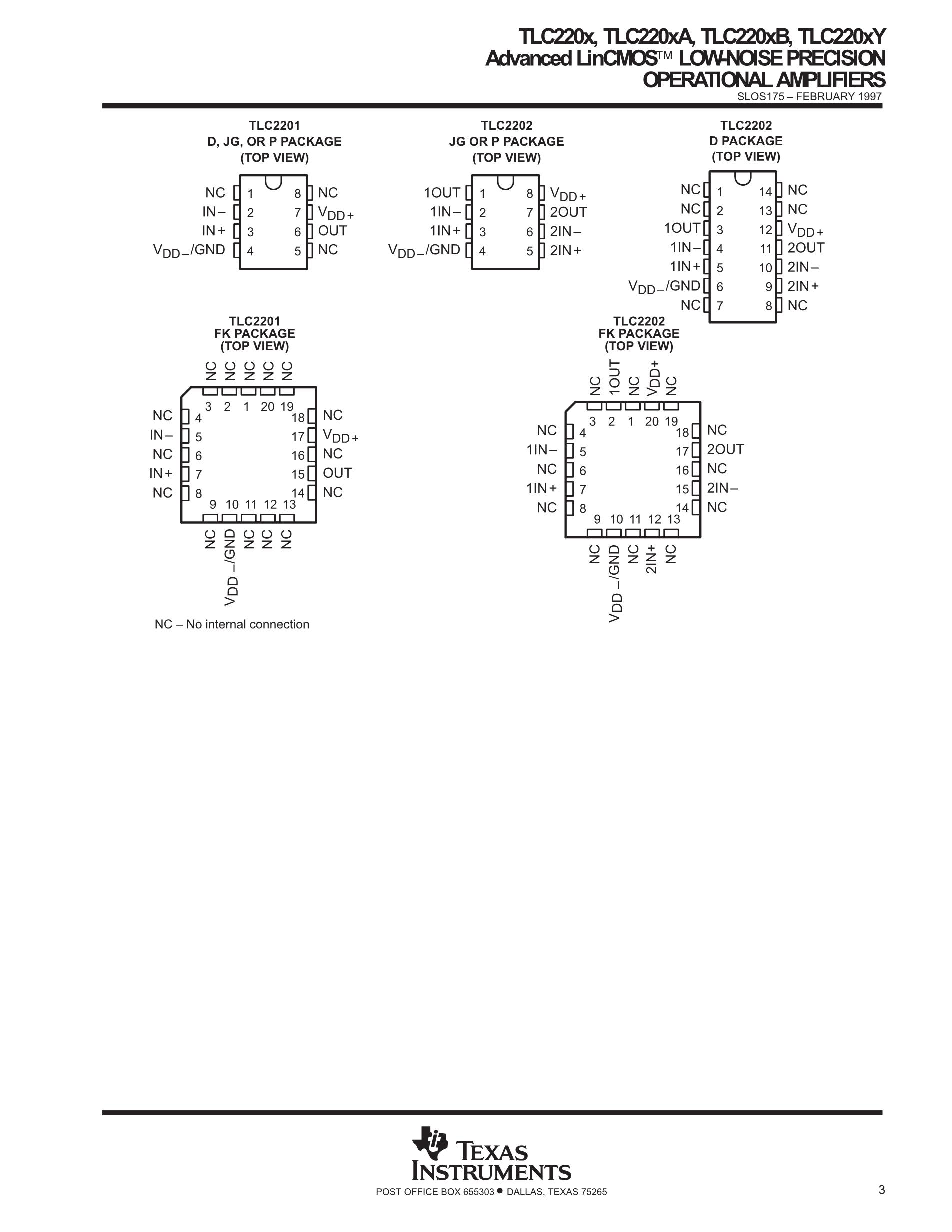

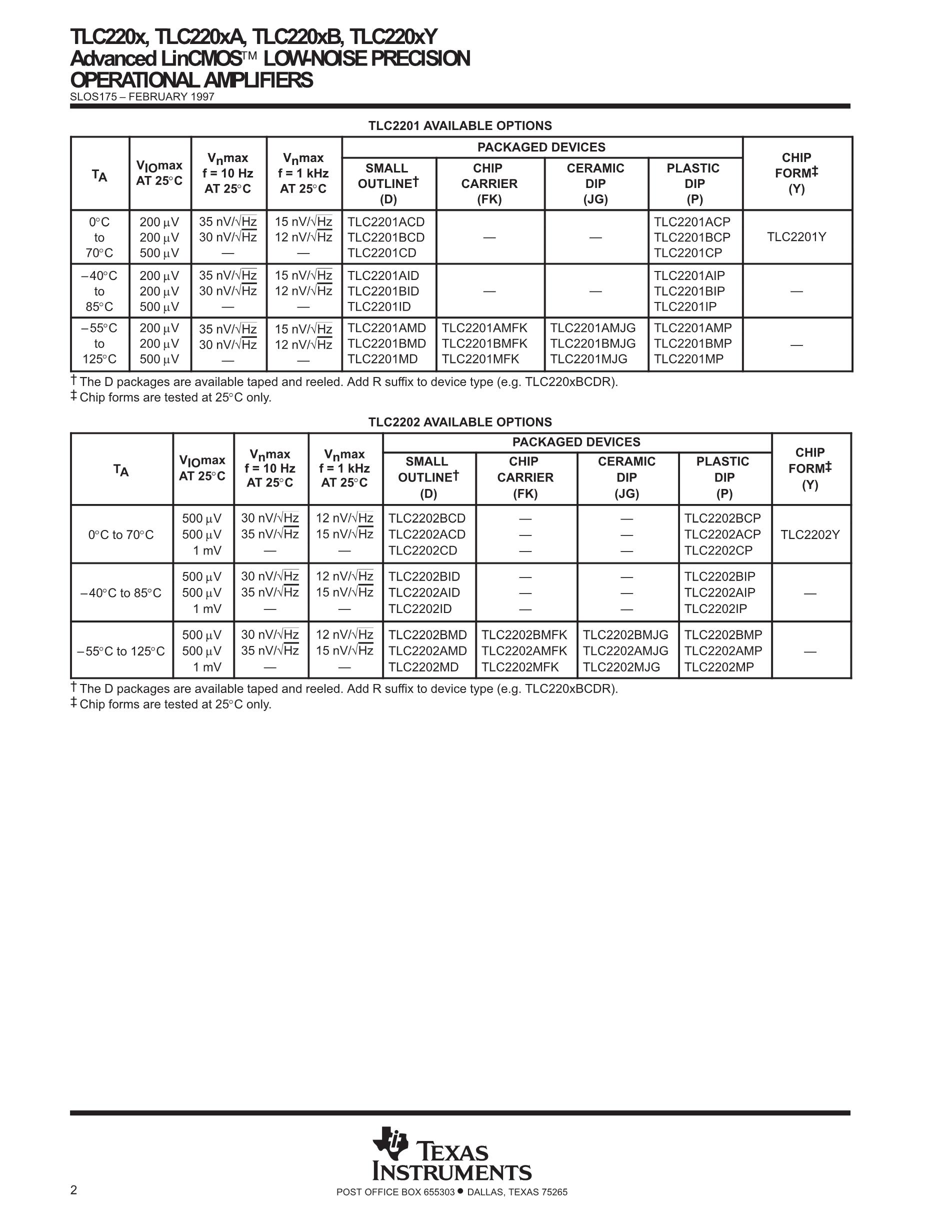

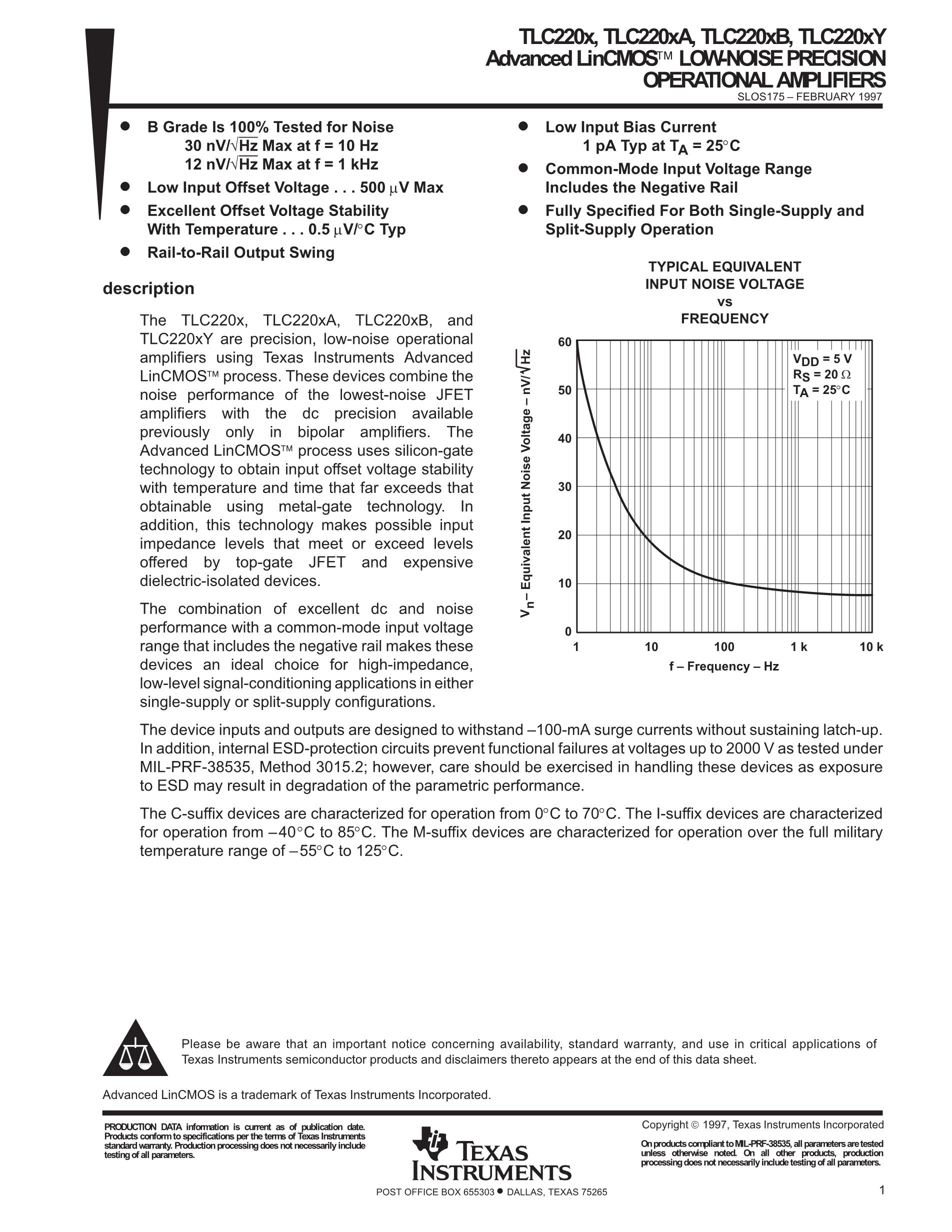

(For reference only)Preview of the first 3 pages of the data sheet
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $7.92960 | US $7.13664 | US $7.13664 |
| ≥5: | US $7.13664 | US $6.42298 | US $32.11490 |
| ≥10: | US $6.74016 | US $6.06614 | US $60.66140 |
| ≥20: | US $6.54192 | US $5.88773 | US $117.75460 |
| ≥50: | US $6.34368 | US $5.70931 | US $285.46550 |
| ≥100: | US $6.14544 | US $5.53090 | US $553.09000 |
| ≥200: | US $5.94720 | US $5.35248 | US $1070.49600 |
| ≥500: | US $5.74896 | US $5.17406 | US $2587.03000 |
| ≥1000: | US $5.55072 | US $4.99565 | US $4995.65000 |
Substitute (equivalent) Product
| Product Name | Description |
|---|---|
| TLC272 | Dual low-noise JFET-input operational amplifier with high input impedance and low bias current. |
| LM358 | Dual general-purpose operational amplifier with low power consumption and wide supply voltage range. |
| TLV2372 | Dual rail-to-rail input and output operational amplifier with low quiescent current and high slew rate. |
| MCP6002 | Dual low-power operational amplifier with rail-to-rail input and output, suitable for battery-powered applications. |
| OPA234 | Dual precision JFET-input operational amplifier with low noise and low input bias current. |
Product Usage
The TLC2202AID is a dual, low-power, rail-to-rail input and output operational amplifier (op-amp) from Texas Instruments. It is commonly used in a variety of circuits where low power consumption, wide supply voltage range, and rail-to-rail operation are required. Here are some typical applications and circuits that might use the TLC2202AID:
Signal Conditioning Circuits:
Data Acquisition Systems:
Sensor Interfaces:
Audio Circuits:
Power Management Circuits:
Medical Devices:
Industrial Control Systems:
Consumer Electronics:
Automotive Applications:
Educational and Research Equipment:
When selecting the TLC2202AID for a circuit, consider its key features such as low power consumption (120 μA per amplifier), wide supply voltage range (1.8V to 5.5V), and rail-to-rail input and output capability, which make it suitable for a wide range of applications.
Global Logistics Country List
| Flag | Country | Estimated Delivery Time | Minimum First Weight Cost | ||
|---|---|---|---|---|---|
| Express | Standard Shipping | Express (0.5kg) | Standard Shipping (0.05kg) | ||
ExpandOrder
Payment
Shipping
Gift Coupon/Plus service
Returning
Returns are normally accepted when completed within 90 days from the date of the parcel delivered.
Defective ( Please provide a third party quality report of nonconforming products)
Return Freight charges must be prepaid; we will not accept COD shipments.
Warranty
All UTSOURCE purchases have a 90 days money back return policy, plus a 100 days UTSOURCE warranty against any manufacturing defects.This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation.
TLC2202AID
TLC2202AID has several brands around the world that may have alternate names for TLC2202AID due to regional differences or acquisition. TLC2202AID may also be known as the following names:
