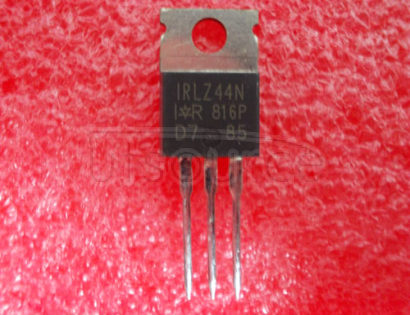

55V Single N-Channel HEXFET Power MOSFET in a TO-220AB package
A IRLZ44NPBF with Standard Packaging
All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The parameters and performance indicators of this product are sourced from the internet. In case of discrepancies, please refer to the manufacturer's technical specifications!！
Preview of the first 3 pages of the data sheet
| QUANTITY | UNIT PRICE | PLUS UNIT PRICE | TOTAL PRICE |
|---|---|---|---|
| ≥1: | US $0.93240 | US $0.83916 | US $0.83916 |
| ≥5: | US $0.69930 | US $0.62937 | US $3.14685 |
| ≥10: | US $0.48951 | US $0.44056 | US $4.40560 |
| ≥20: | US $0.46620 | US $0.41958 | US $8.39160 |
| ≥50: | US $0.41958 | US $0.37762 | US $18.88100 |
| ≥100: | US $0.40792 | US $0.36713 | US $36.71300 |
| ≥200: | US $0.39627 | US $0.35664 | US $71.32800 |
| ≥500: | US $0.38462 | US $0.34616 | US $173.08000 |
| ≥1000: | US $0.37296 | US $0.33566 | US $335.66000 |
Substitute (equivalent) Product
| Substitute Product | Description |
|---|---|
| IRLZ44PBF | N-Channel MOSFET, 55V, 47A, through-hole |
| IRFZ44N | N-Channel MOSFET, 55V, 49A, standard gate drive |
| RFP70N06 | N-Channel MOSFET, 60V, 70A, low Rds(on) |
| IRL2203NPBF | N-Channel MOSFET, 30V, 57A, logic level gate drive |
| STP55NF06 | N-Channel MOSFET, 60V, 50A, logic level gate drive |
| NVB58N04 | N-Channel MOSFET, 40V, 58A, logic level |
| FQP30N06L | N-Channel MOSFET, 60V, 32A, low Rds(on), logic level gate drive |
| IPP60R099P7 | N-Channel MOSFET, 600V, 27A, low Rds(on), high-speed switching |
| NTD5865NL | N-Channel MOSFET, 60V, 36A, logic level |
| STB55NF06L | N-Channel MOSFET, 60V, 50A, logic level, low gate charge |
Product Usage
The IRLZ44NPBF is an N-channel power MOSFET commonly used in various electronic circuits due to its high current handling capability, low on-resistance, and ease of driving from logic-level voltages. Here are some typical applications and circuits where the IRLZ44NPBF might be used:
Motor Drivers: Used in H-Bridge circuits and other motor control circuits for driving DC and stepper motors. The MOSFET can handle the high current demands of motors and is easily driven from microcontroller GPIO pins.
Switching Power Supplies: Functions as the main switching element in DC-DC converters, such as buck, boost, and buck-boost converters. Its low on-resistance helps in efficient power conversion.
Relay Replacement: Acts as a solid-state relay for switching high current loads. It can replace mechanical relays in many applications, offering faster switching and greater reliability.
LED Drivers: Used in high-power LED driver circuits to control the current through the LEDs. Its fast switching capability helps in creating efficient PWM dimming circuits.
Battery Management Systems (BMS): Helps in switching and protecting battery packs in rechargeable battery systems for power tools, electric vehicles, and energy storage systems.
Audio Amplifiers: Functions in the output stages of Class D audio amplifiers, where efficient high-speed switching is crucial for sound quality and power efficiency.
Microcontroller Interfacing: Used to interface high current or high voltage components with microcontrollers. For example, it can be used to drive solenoids, heaters, or other high current loads.
Inverters and UPS Systems: Utilized in the output stage of inverters and uninterruptible power supplies for converting DC to AC power.
Load Switches: Functions as a power switch to enable or disable power to various components in portable electronics, thereby conserving battery life.
Protection Circuits: Used in over-current and over-voltage protection circuits because of its ability to handle high currents and its fast switching capabilities.
When using the IRLZ44NPBF in these applications, it is essential to consider its key specifications:
These specifications make it suitable for a wide range of medium to high-power applications where efficient switching and low power dissipation are crucial.
